1.Equipment Overview

The Activated Carbon Adsorption Organic Solvent Recovery Equipment is an environmental protection device that utilizes activated carbon adsorption principles to purify organic waste gas generated during industrial production and recover organic solvents. This equipment is widely used in waste gas treatment for friction material, rubber, chemical, coating, and printing industries. It effectively recovers organic solvents  achieving both compliant waste gas emission and solvent resource reuse. The equipment adopts a modular design and can be customized according to actual processing air volume and solvent types.

3. Working Principle

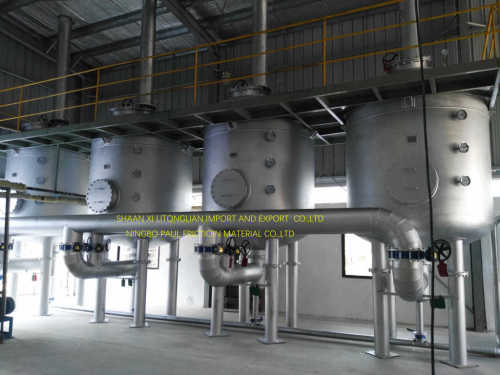

Organic-solvent-laden waste gas enters the adsorption bed through a collection system, where organic solvents are adsorbed by activated carbon and the purified gas is discharged in compliance with emission standards. When the activated carbon reaches adsorption saturation, the system automatically switches to steam desorption mode. High-temperature steam desorbs the adsorbed organic solvents, and the solvent-containing steam is cooled by a condenser before entering a separation tank, where solvent and water are separated by density difference. The recovered solvent can be reused. The system typically consists of 4 adsorption tanks operating alternately in adsorption and desorption modes for continuous operation. The PLC control system monitors operating parameters in real time, ensuring safe and stable equipment operation.

3. Core Advantages

Organic solvent recovery rate exceeds 75%, significantly reducing production costs.

Meets Exd IIB T4 explosion-proof grade, suitable for flammable and explosive environments.

Compact structure, easy installation, flexible expansion based on air volume.

High-purity recovered solvent for direct reuse in production processes.

Purified gas meets national environmental emission standards.

4. Main Technical Parameters

Model: SREQ18-4

Air Volume: 6800 m3/h

Recovery Rate: About 75%

Adsorbent Type: Activated Carbon

Desorption Method: Steam Desorption

Adsorption Tank: 4

Condensation Method:Water Cooling

5. Applicable Industries

Friction Material Manufacturing: yarn (cloth) impregnated rubber slurry for making clutch facing.

Rubber Products:Solvent waste gas recovery during drying the rubber product.

Chemical Industry: Recovery and reuse of organic solvents in chemical production.

Coating Industry: Organic waste gas treatment in painting and drying processes

6. Supply Notes

This equipment is supplied by Ningbo Paul Friction Material Co., Ltd. Some equipment is produced by the company's own factory, while the rest comes from partner factories, ensuring both production capacity and quality. Equipment export is handled by Shaanxi Litonglian Import & Export Co., Ltd, providing complete customs declaration, commodity inspection, and international logistics services.

Equipment customization, installation guidance, and after-sales technical support are available upon customer request. The warranty period is 12 months, with free repair service during the warranty period and paid technical support and spare parts supply after the warranty period.
